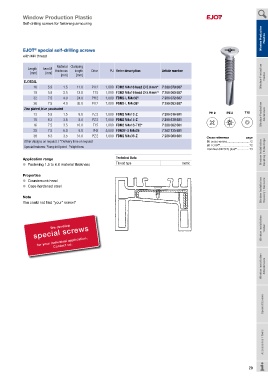

Page 29 - igs-ejot-gesamt_en

Window Production Plastic
Self-drilling screws for fastening armouring
Window Production Window Production Plastics Plastics

EJOT special self-drilling screws
®
with M4 thread

Material Clamping
Length head Ø thickness length Drive PU Order description Article number
[mm] [mm]
[mm] [mm] Window Production Timber
EJOSEAL
16 5.9 1.5 11.0 PH 2 1,000 FDM2 M4x16 head Ø 5.9 mm* 7 286 079 607
19 5.9 3.5 12.0 T15 1,000 FDM2 M4x19 head Ø 5.9 mm 2) 7 286 080 607
32 7.5 4.0 24.0 PH 2 1,000 FDM2-L M4x32 1) 7 286 072 607
38 7.5 4.0 30.0 PH 2 1,000 FDM2-L M4x38 1) 7 386 053 607
Zinc plated, blue passivated
13 5.9 1.5 8.0 PZ 2 1,000 FDM2 M4x13-Z 7 286 016 601 PH 2 PZ 2 T15 Window Production Aluminium
15 6.3 3.5 8.0 PZ 2 1,000 FDM2 M4x15-Z 7 286 636 601
16 7.5 3.5 10.0 T15 1,000 FDM2 M4x16-T15* 7 286 062 601
25 7.5 6.0 9.0 PH2 5,000 FDM2F-S M4x25 7 282 135 601
38 6.3 3.5 31.0 PZ 2 1,000 FDM2 M4x38-Z 7 286 060 601 Cross reference page
Other designs on request. | * Delivery time on request Bit cross-recess ...........................72
®
Special features: long drill point slight lens Bit TORX ....................................72
1)
2)
Hammer drill SDS plus ...............73 Window Installation Coupling / False Edge
®
Application range Technical Data
l Fastening 1.5 to 6.0 material thickness Thread type metric

Properties
l Countersunk head
l Case-hardened steel Window Installation Masonry / Concrete

Note
You could not find "your" screw?

We develop
special screws Window Installation Timber
for your individual application.
Contact us.

Window Installation Attachments

Special Screws

Accessories / Tools
