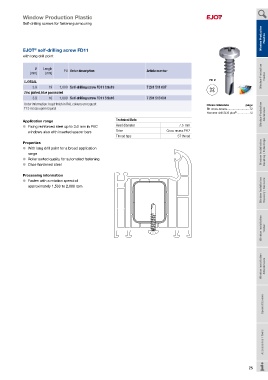

Page 25 - igs-ejot-gesamt_en

Window Production Plastic
Self-drilling screws for fastening armouring
Window Production Window Production Plastics Plastics

EJOT self-drilling screw FD11
®
with long drill point

Ø Length
[mm] [mm] PU Order description Article number Window Production Timber
EJOSEAL PH 2
3.9 19 1,000 Self-drilling screw FD11 3.9x19 7 281 511 607
Zinc plated, blue passivated
3.9 16 1,000 Self-drilling screw FD11 3.9x16 7 281 513 601
Order information: head finish in RAL colours on request Cross reference page
T15 recess upon request Bit cross-recess ...........................72
Hammer drill SDS plus ...............73 Window Production Aluminium
®
Application range Technical Data
l Fixing reinforced steel up to 3.0 mm in PVC Head diameter 7.5 mm
windows also with inserted spacer bars Drive Cross recess PH 2
Thread type ST thread
Properties
l With long drill point for a broad application
range Window Installation Coupling / False Edge
l Roller sorted quality for automated fastening
l Case-hardened steel

Processing information
Window Installation Masonry / Concrete
l Fasten with a rotation speed of
approximately 1,500 to 2,000 rpm

Window Installation Timber

Window Installation Attachments

Special Screws

Accessories / Tools

25
