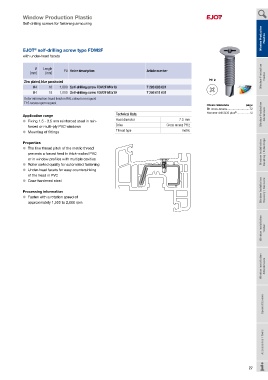

Page 27 - igs-ejot-gesamt_en

Window Production Plastic
Self-drilling screws for fastening armouring
Window Production Window Production Plastics Plastics

EJOT self-drilling screw type FDM2F
®
with under-head facets

Ø Length
[mm] [mm] PU Order description Article number Window Production Timber
Zinc plated, blue passivated PH 2
M4 16 1,000 Self-drilling screw FDM2F M4x16 7 286 606 601
M4 19 1,000 Self-drilling screw FDM2F M4x19 7 286 611 601
Order information: head finish in RAL colours on request
T15 recess upon request
Cross reference page
Bit cross-recess ...........................72
®
Application range Technical Data Hammer drill SDS plus ...............73 Window Production Aluminium
l Fixing 1.5 - 3.5 mm reinforced steel in rein- Head diameter 7.5 mm
forced or multi-ply PVC windows Drive Cross recess PH 2
l Mounting of fittings Thread type metric

Properties
l The fine thread pitch of the metric thread
prevents a forced feed in thick-walled PVC Window Installation Coupling / False Edge
or in window profiles with multiple cavities
l Roller sorted quality for automated fastening
l Under-head facets for easy countersinking
of the head in PVC
l Case-hardened steel

Processing information Window Installation Masonry / Concrete
l Fasten with a rotation speed of
approximately 1,500 to 2,000 rpm

Window Installation Timber

Window Installation Attachments

Special Screws

Accessories / Tools

27
