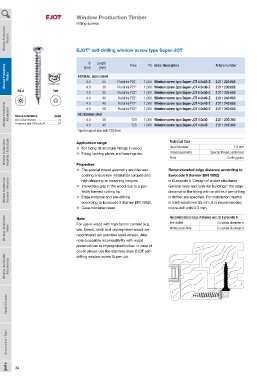

Page 34 - igs-ejot-gesamt_en

Window Production Timber
Fitting screws
Window Production Plastics EJOT self-drilling window screw type Super-JOT

®

Ø Length Drive PU Order description Article number
Window Production Window Production Timber Timber EJOSEAL, wax coated Pozidrive PZ2* 1,000 Window screw type Super-JOT 4.0x25-Z 2 211 225 608
[mm]
[mm]
25
4.0
PZ 2 T20 4.0 30 Pozidrive PZ2* 1,000 Window screw type Super-JOT 4.0x30-Z 2 211 230 608
4.0 35 Pozidrive PZ2* 1,000 Window screw type Super-JOT 4.0x35-Z 2 211 235 608
4.0 40 Pozidrive PZ2* 1,000 Window screw type Super-JOT 4.0x40-Z 2 211 240 608
1,000 Window screw type Super-JOT 4.0x45-Z
4.0
45
Pozidrive PZ2*
2 211 245 608
Window Production Aluminium Cross reference page A2 stainless steel 50 Pozidrive PZ2* 1,000 Window screw type Super-JOT 4.0x50-Z 2 211 250 608
4.0
1,000 Window screw type Super-JOT 4.0x30
30
T20
4.0
2 211 230 300
Bit cross-recess ...........................72
Hammer drill SDS plus ...............73
®
4.0
45
*upon request also with T20 drive T20 1,000 Window screw type Super-JOT 4.0x45 2 211 245 300
Technical Data
Window Installation Coupling / False Edge Application range Head diameter Special thread, reinforced
7.0 mm
For fixing tilt and turn fittings in wood
l
Thread geometry
Fixing locking plates and bearings etc.
l
Cutting point
Point
Properties
l The special thread geometry and the wax Recommended edge distance according to
coating ensure low installation torques and Eurocode 5 (former DIN 1052)
Window Installation Masonry / Concrete l Immediate grip in the wood due to a per- General rules and rules for buildings" the edge
In Eurocode 5 "Design of timber structures -
high stripping or loosening torques
distance of the fixing with or without pre-drilling
fectly formed cutting tip.
in timber are specified. For installation depths
Edge distance and pre-drilling
l
according to Eurocode 5 (former DIN 1052).
to pre-drill with Ø 3 mm.
l Case-hardened steel in hard wood over 25 mm, it is recommended
Recommended edge distance acc. to Eurocode 5
Window Installation Timber Note Pre-drilled 3 x screw diameter d
For use in wood with high tannin content (e.g.
Without pre-hole
5 x screw diameter d
oak, beech, larch and impregnated wood) we
recommend our stainless steel version. Also
note a possible incompatibility with wood
preservatives or impregnated timber. In case of
doubt please use the stainless steel EJOT self-
Window Installation Attachments
drilling window screw Super-Jot.
Special Screws

Accessories / Tools
