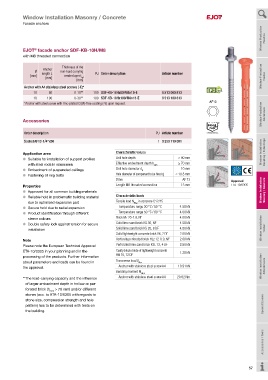

Window Installation Masonry / Concrete
Facade anchors
Window Production Plastics

EJOT facade anchor SDF-KB-10H/M8
®
with M8 threaded connection

Thickness of the
Anchor
Ø non-load carrying
[mm] length L render layer t PU Order description Article number Window Production Timber
[mm] tol
[mm]
Anchor with A4 stainless steel screws (-E)*
10 80 0-10** 100 SDF-KB-10Hx80/M8x13-E 8 513 080 813
10 100 0-30** 100 SDF-KB-10Hx100/M8x13-E 8 513 100 813
*Anchor with steel screw with zinc-plated Cr(VI)-free coating (-V) upon request. AF13
Window Production Aluminium

Accessories

Order description PU Article number
Socket AF13-1/4“x50 1 9 250 719 001

Application area Characteristic values Window Installation Coupling / False Edge
l Suitable for installation of support profiles Drill hole depth ≥ 90 mm
with steel rods in rainscreen Effective embedment depth h nom ≥ 70 mm
l Embedment of suspended ceilings Drill hole diameter d 0 10 mm
l Fastening of ring bolts Hole diameter of component to be fixed d f ≤ 10.5 mm
Drive AF 13 Approval
Properties Length M8 threaded connection 13 mm ETA-10/0305
l Approved for all common building materials Window Installation Window Installation Masonry / Concrete Masonry / Concrete
l Reliable hold in problematic building material Characteristic loads
due to optimised expansion part Tensile load N in concrete C12/15
Rk,p
l Secure hold due to radial expansion Temperature range 30 °C / 50 °C 4.50 kN
l Product identification through different Temperature range 50 °C / 80 °C 4.00 kN
sleeve colours Brick Mz 20-1.8, NF 4.00 kN
l Double safety lock against torsion for secure Solid lime sand brick KS 36, NF 4.50 kN
installation Solid lime sand brick KS 20, 8 DF 4.50 kN Window Installation Timber
Solid lightweight concrete brick V6, 2 DF 2.00 kN
Note Vertically perforated brick HLz 12-0.9, NF 2.00 kN
Please note the European Technical Approval Perforated lime sand brick KSL 12, 4 DF 2.50 kN
ETA-10/0305 in your planning and in the Cavity block made of lightweight concrete 1.20 kN
processing of the products. Further information Hbl 10, 12 DF
about parameters and loads can be found in Transverse load V Rk,s
the approval. Anchor with stainless steel screw A4 10.91 kN Window Installation Attachments
Bending moment M Rk,s
** The load-carrying capacity and the influence Anchor with stainless steel screw A4 20.62 Nm
of larger embedment depth in hollow or per-
forated brick (h nom > 70 mm) and/or different
stones (acc. to ETA-10/0305 with regards to
stone size, compression strength and hole
pattern) has to be determined with tests on Special Screws
the building.

Accessories / Tools

57
