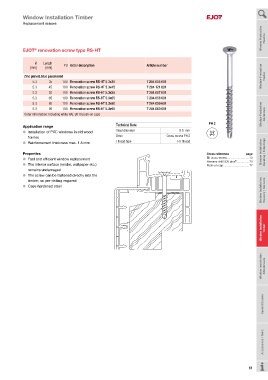

Page 61 - igs-ejot-gesamt_en

Window Installation Timber
Replacement screws
Window Production Plastics

EJOT renovation screw type RS-HT
®

Ø Length
[mm] [mm] PU Order description Article number
Zinc plated, blue passivated Window Production Timber
5.3 35 100 Renovation screw RS-HT 5.3x35 7 284 055 601
5.3 45 100 Renovation screw RS-HT 5.3x45 7 284 121 601
5.3 55 100 Renovation screw RS-HT 5.3x55 7 284 057 601
5.3 65 100 Renovation screw RS-HT 5.3x65 7 284 058 601
5.3 80 100 Renovation screw RS-HT 5.3x80 7 284 059 601
5.3 95 100 Renovation screw RS-HT 5.3x95 7 284 060 601
Order information: Including white RAL 9010 push-on caps Window Production Aluminium

Application range Technical Data PH 2
l Installation of PVC windows in old wood Head diameter 9.5 mm
frames Drive Cross recess PH 2
l Reinforcement thickness max. 1.5 mm Thread type HT thread

Properties Cross reference page Window Installation Coupling / False Edge
l Fast and efficient window replacement Bit cross-recess ...........................72
Hammer drill SDS plus ...............73
®
l The interior surface (render, wallpaper etc.) Push-on cap ................................77
remains undamaged
l The screw can be fastened directly into the
Window Installation Masonry / Concrete
timber, no pre-drilling required
l Case-hardened steel

Window Installation Window Installation Timber Timber

Window Installation Attachments

Special Screws

Accessories / Tools

61
