Pos. Art.No. Qty Description Type Pos. Art.No. Qty Description Type

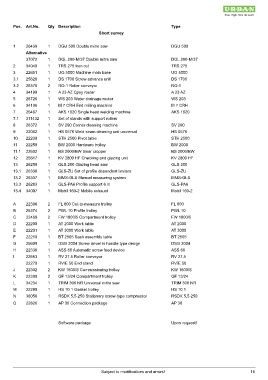

Short survey

J 22302 2 KW 1600/S Commissioning trolley KW 1600/S 1 26439 1 DGU 500 Double mitre saw DGU 500
Length 1600 mm, width 1150 mm, complete with remova-
ble steering rollers dia. 125 mm, optional with felt or rubbe- Alternative
rized cover, to be stored into one another. Capacity 750 kg. 37072 1 DGL 200-M/37 Double mitre saw DGL 200-M/37
2 34040 1 TRS 275 Iron cut TRS 275
K 22300 2 GF 13/24 Compartment trolley GF 13/24 3 22651 1 UG 5000 Machine main base UG 5000
Length 1300 mm, width 1100 mm, 24 panes can be accom- 3.1 25628 1 DS 1700 Screw advance unit DS 1700
modated. Capacity 750 kg.
3.2 26376 2 RO-1 Roller conveyor RO-1
4 34199 1 A 23 AZ Cpoy router A 23 AZ
L 34234 1 TRIM 300 NR Universal mitre saw TRIM 300 NR
Universal oscillating and mitre saw, complete with carbide 5 26726 1 WS 203 Water drainage router WS 203
tipped saw blade, diameter 300mm, aluminium table plate 6 34136 1 M 7 CRH End milling machine M 7 CRH
with longitudinal stop, manual clamps, mitre 45° RS and 45° 7 25467 1 AKS 1020 Single head welding machine AKS 1020
LS possible, sawing head inclinable up to 45°.
7.1 311432 1 Set of stands with support rollers
8 26372 1 SV 290 Corner cleaning machine SV 290
M 22290 1 HS 10.1 Gasket trolley HS 10.1
Length 600 mm, width 600 mm, height 900 mm, 4 castor 9 22062 1 HS 0576 Weld seam cleaning unit universal HS 0576
wheels, 2 of them with locking brakes. Two winches can be 10 22239 1 STH 2500 Pivot table STH 2500
accommodated. 11 22259 1 BW 2000 Hardware trolley BW 2000
11.1 22602 1 BS 2000/BW Gear cropper BS 2000/BW
N 36058 1 RSDK 5,5-250 Stationary screw-type compressor RSDK 5,5-250 12 25617 1 KV 2800 HF Checking and glazing unit KV 2800 HF
for 30 units 650 l effective, pressure: 10 bars, belt diven,
5.5 kW, 400 V, great sound insulation, 570x1415x1435mm 13 26259 1 GLS 200 Glazing bead saw GLS 200
(width x depth x height) incl. delta switch (mandatory from 13.1 26338 1 */6 =8 6HW RI SUR¿OH GHSHQGHQW OLPLWHUV GLS-ZU
N: RQ LQFO DLU GU\HU LQFO FRQQHFWLQJ SLSLQJ LQFO DLU ¿OWHU 13.2 26337 1 MMS-GLS Manual measuring system MMS-GLS
mat incl. control of sense of rotation all ready for use moun-
ted on a 250 l tank Advantages: oil cooling = also suitable 13.3 26283 1 */6 3$ 3UR¿OH VXSSRUW P GLS-PA6
IRU FRQWLQXRXV RSHUDWLRQ LQVWDOOHG ¿OWHU FRQVWDQW DLU TXDOLW\ 13.4 34097 1 Mobil 160-2 Mobile exhaust Mobil 160-2
big aftercooling = arid air sound insulation as a standard
good accessibility = simple and quick maintenance incl.
dryer = protects tools and machines against wear caused A 22306 2 FL 800 Cut-to-measure trolley FL 800
by condensation = cost saving compact system = set up, B 26374 2 3:/ 3UR¿OH WUROOH\ PWL 10
connect - ready.
C 22468 2 FW 1800/5 Compartment trolley FW 1800/5
D 22200 1 AT 2000 Work table AT 2000
O 22826 1 AP 30 Connection package AP 30
E 22201 1 AT 3000 Work table AT 3000
F 22210 1 BT 2505 Sash assembly table BT 2505
Software package Upon request
G 25609 1 DSG 2004 Screw driver in handle type design DSG 2004
H 22338 1 ASS 60 Automatic screw feed device ASS 60
I 22663 1 RV 27.5 Roller conveyor RV 27.5
22270 1 RV/E 50 End stand RV/E 50
J 22302 2 KW 1600/S Commissioning trolley KW 1600/S
K 22300 2 GF 13/24 Compartment trolley GF 13/24
L 34234 1 TRIM 300 NR Universal mitre saw TRIM 300 NR
M 22290 1 HS 10.1 Gasket trolley HS 10.1
N 36058 1 RSDK 5,5-250 Stationary screw-type compressor RSDK 5,5-250
O 22826 1 AP 30 Connection package AP 30

Software package Upon request!

6XEMHFW WR PRGL¿FDWLRQV DQG HUURUV 6XEMHFW WR PRGL¿FDWLRQV DQG HUURUV
