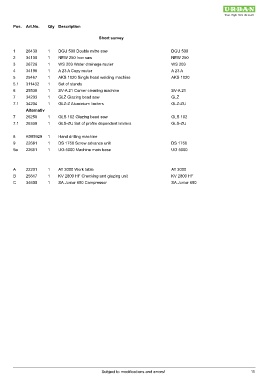

Pos. Art.No. Qty Description Type Pos. Art.No. Qty Description

Short survey
A 22201 1 AT 3000 Work table AT 3000
Compl. with 2 shelves, compressed air distributor with 1 26439 1 DGU 500 Double mitre saw DGU 500
4 connections, electrical outlet with 2 connections. Width
1300 mm, length 3000 mm, height 850-1000 mm. 2 34130 1 NEW 250 Iron saw NEW 250
3 26726 1 WS 203 Water drainage router WS 203
4 34198 1 A 23 A Copy router A 23 A
5 25467 1 AKS 1020 Single head welding machine AKS 1020
B 25617 1 KV 2800 HF Checking and glazing unit KV 2800 HF
without height adjustment, clamping width 2740mm clam- 5.1 311432 1 Set of stands
ping height 2200 mm, length 3650 mm, width 800 mm, 6 25538 1 SV-A 21 Corner cleaning machine SV-A 21
height 2500 mm, carrying capacity 300 kg weight 440 kg.
7 34203 1 GLZ Glazing bead saw GLZ
7.1 34204 1 GLZ-Z Aluminium limiters GLZ-ZU
Alternativ
C 34600 1 SA Junior 650 Stationary shop compressor SA Junior 650 7 26258 1 GLS 102 Glazing bead saw GLS 102
650 l/min, suction capacity = 520 l/min effective, 10 bar, 2 7.1 26338 1 */6 =8 6HW RI SUR¿OH GHSHQGHQW OLPLWHUV GLS-ZU
cylinders, belt-driven, only 1000 rpm, 4 kW, 400 V, mounted
RQ D KRUL]RQWDO O WDQN LQFO ¿OWHU SUHVVXUH UHJXODWRU DG-
vantages: cast cylinder with low rotational speed = solid and 8 K005929 1 Hand drilling machine
smooth running horizontal tank = less space is required, big
tank volume = low switching frequency for 30 units applica- 9 22681 1 DS 1750 Screw advance unit DS 1750
ble without pneumatic screw driver. 9a 22651 1 UG 5000 Machine main base UG 5000

A 22201 1 AT 3000 Work table AT 3000
B 25617 1 KV 2800 HF Checking and glazing unit KV 2800 HF
C 34600 1 SA Junior 650 Compressor SA Junior 650

6XEMHFW WR PRGL¿FDWLRQV DQG HUURUV 6XEMHFW WR PRGL¿FDWLRQV DQG HUURUV
