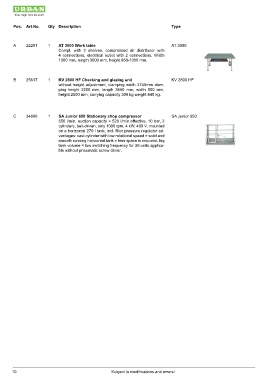

Pos. Art.No. Qty Description Type

A 22201 1 AT 3000 Work table AT 3000
Compl. with 2 shelves, compressed air distributor with
4 connections, electrical outlet with 2 connections. Width
1300 mm, length 3000 mm, height 850-1000 mm.

B 25617 1 KV 2800 HF Checking and glazing unit KV 2800 HF
without height adjustment, clamping width 2740mm clam-
ping height 2200 mm, length 3650 mm, width 800 mm,
height 2500 mm, carrying capacity 300 kg weight 440 kg.

C 34600 1 SA Junior 650 Stationary shop compressor SA Junior 650
650 l/min, suction capacity = 520 l/min effective, 10 bar, 2
cylinders, belt-driven, only 1000 rpm, 4 kW, 400 V, mounted
RQ D KRUL]RQWDO O WDQN LQFO ¿OWHU SUHVVXUH UHJXODWRU DG-
vantages: cast cylinder with low rotational speed = solid and
smooth running horizontal tank = less space is required, big
tank volume = low switching frequency for 30 units applica-
ble without pneumatic screw driver.

6XEMHFW WR PRGL¿FDWLRQV DQG HUURUV
