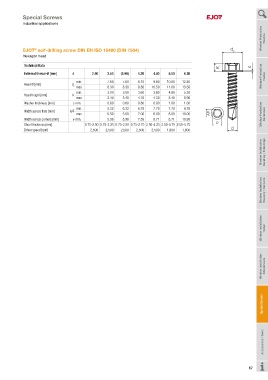

Special Screws
Industrial applications
Window Production Plastics

EJOT self-drilling screw DIN EN ISO 15480 (DIN 7504) d c
®
Hexagon head

Technical Data
K c
External thread-Ø [mm] d 2.90 3.50 (3.90) 4.20 4.80 5.50 6.30 Window Production Timber
min. 7.60 7.60 8.10 9.80 10.00 12.20
Head Ø [mm] d
c max. 8.30 8.30 8.80 10.50 11.00 13.50
min. 3.00 3.00 3.60 3.80 4.80 5.30
Head height [mm] K
max. 3.40 3.40 4.10 4.30 5.40 5.90
Washer thickness [mm] c min. 0.60 0.60 0.80 0.90 1.00 1.00
min. 5.32 6.32 6.78 7.78 7.78 9.78
Width across flats [mm] A/F
max. 5.50 5.50 7.00 8.00 8.00 10.00 A/F Window Production Aluminium
Width across corners [mm] e min. 5.96 5.96 7.59 8.71 8.71 10.95 e
Sheet thickness [mm] 0.75-2.00 0.75-2.25 0.75-2.50 0.75-2.75 2.50-4.25 2.50-4.75 2.50-5.75
Driver speed [rpm] 2,500 2,500 2,500 2,500 2,500 1,800 1,800 d
