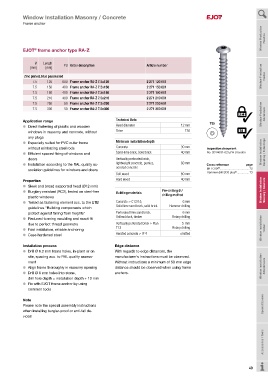

Page 49 - igs-ejot-gesamt_en

Window Installation Masonry / Concrete
Frame anchor
Window Production Plastics

EJOT frame anchor type RA-Z
®

Ø Length
[mm] [mm] PU Order description Article number
Zinc plated, blue passivated Window Production Timber
7.5 120 600 Frame anchor RA-Z 7.5x120 2 271 120 601
7.5 150 400 Frame anchor RA-Z 7.5x150 2 271 150 601
7.5 180 400 Frame anchor RA-Z 7.5x180 2 271 180 601
7.5 210 400 Frame anchor RA-Z 7.5x210 2 271 210 601
7.5 250 50 Frame anchor RA-Z 7.5x250 2 271 250 601
7.5 300 50 Frame anchor RA-Z 7.5x300 2 271 300 601
RC2 Window Production Aluminium
Application range Technical Data T30
l Direct fastening of plastic and wooden Head diameter 12 mm
windows in masonry and concrete, without Drive T30 ETB
any plugs
l Especially suited for PVC outer frame Minimum installation depth
without reinforcing steel rods Concrete 30 mm Inspection document
l Efficient spaced fixing of windows and Sand-lime brick, Solid brick 40 mm No. 2614091-02 EPH Dresden Window Installation Coupling / False Edge
doors Vertically perforated brick,
l Installation according to the RAL quality as- lightweight concrete, pumice, 60 mm Cross reference page
®
sociation guidelines for windows and doors aerated concrete Bit TORX ....................................72
®
Soft wood 60 mm Hammer drill SDS plus ...............73
Properties Hard wood 40 mm
l Sleek and broad supported head (Ø12 mm)
l Burglary resistant (RC2), tested on steel-free Building materials Pre-drilling Ø / Window Installation Window Installation Masonry / Concrete Masonry / Concrete
plastic windows drilling method
l Tested as fastening element acc. to the ETB Concrete ≥ C12/15, 6 mm
guidelines "Building components which Solid lime sand brick, solid brick Hammer drilling
protect against falling from heights" Perforated lime sand brick, 6 mm
l Reduced forming moulding and exact fit Hollow block, timber Rotary drilling
due to perfect thread geometry Vertically perforated brick ≥ Plan 5 mm
l Fast installation, reliable anchoring T12 Rotary drilling Window Installation Timber
l Case-hardened steel Aerated concrete ≥ PP4 omitted

Installation process Edge distance
l Drill Ø 6.2 mm frame holes, in-plant or on With regards to edge distances, the
site, spacing acc. to RAL quality assess- manufacturer's instructions must be observed.
ment Without instructions a minimum of 50 mm edge
l Align frame thoroughly in masonry opening distance should be observed when using frame Window Installation Attachments
l Drill Ø 6 mm holes into stone, anchors.
drill hole depth = installation depth + 10 mm
l Fix with EJOT frame anchor by using
common tools

Note
Please note the special assembly instructions Special Screws
when installing burglar-proof or anti-fall de-
vices!

Accessories / Tools

49
