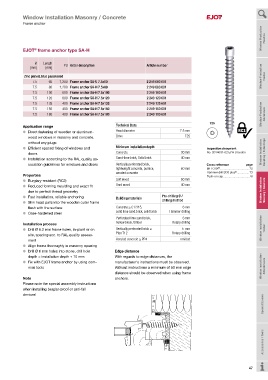

Window Installation Masonry / Concrete
Frame anchor
Window Production Plastics

EJOT frame anchor type SA-H
®

Ø Length
[mm] [mm] PU Order description Article number
Zinc plated, blue passivated Window Production Timber
7.5 60 1,200 Frame anchor SA-U 7.5x60 2 249 060 601
7.5 80 1,200 Frame anchor SA-H 7.5x80 2 249 080 601
7.5 100 600 Frame anchor SA-H 7.5x100 2 249 100 601
7.5 120 600 Frame anchor SA-H 7.5x120 2 249 120 601
7.5 135 400 Frame anchor SA-H 7.5x135 2 249 135 601
7.5 150 400 Frame anchor SA-H 7.5x150 2 249 150 601
7.5 180 400 Frame anchor SA-H 7.5x180 2 249 180 601 Window Production Aluminium

T25
Application range Technical Data
l Direct fastening of wooden or aluminum- Head diameter 7.5 mm RC2
wood windows in masonry and concrete, Drive T25
without any plugs
l Efficient spaced fixing of windows and Minimum installation depth Inspection document
doors Concrete 30 mm No. 2614091-02 EPH Dresden Window Installation Coupling / False Edge
l Installation according to the RAL quality as- Sand-lime brick, Solid brick 40 mm
sociation guidelines for windows and doors Vertically perforated brick, Cross reference page
lightweight concrete, pumice, 60 mm Bit TORX ....................................72
®
®
aerated concrete Hammer drill SDS plus ...............73
Properties Push-on cap ................................76
l Burglary-resistant (RC2) Soft wood 60 mm
l Reduced forming moulding and exact fit Hard wood 40 mm
due to perfect thread geometry Window Installation Window Installation Masonry / Concrete Masonry / Concrete
l Fast installation, reliable anchoring Building materials Pre-drilling Ø /
drilling method
l Slim head pulls into the wooden outer frame
flush with the surface Concrete ≥ C12/15, 6 mm
l Case-hardened steel solid lime sand brick, solid brick Hammer drilling
Perforated lime sand brick, 6 mm
Installation process hollow block, timber Rotary drilling
l Drill Ø 6.2 mm frame holes, in-plant or on Vertically perforated brick ≥ 5 mm Window Installation Timber
site, spacing acc. to RAL quality assess- Plan T12 Rotary drilling
ment Aerated concrete ≥ PP4 omitted
l Align frame thoroughly in masonry opening
l Drill Ø 6 mm holes into stone, drill hole Edge distance
depth = installation depth + 10 mm With regards to edge distances, the
l Fix with EJOT frame anchor by using com- manufacturer's instructions must be observed.
mon tools Without instructions a minimum of 50 mm edge Window Installation Attachments
distance should be observed when using frame
Note anchors.
Please note the special assembly instructions
when installing burglar-proof or anti-fall
devices!
