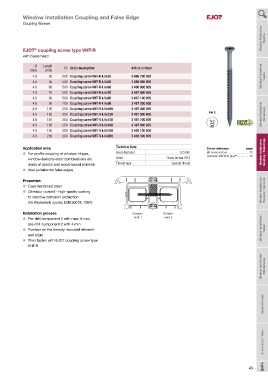

Page 43 - igs-ejot-gesamt_en

Window Installation Coupling and False Edge
Coupling Screws
Window Production Plastics

EJOT coupling screw type VHT-R
®
with bugle head

Ø Length
[mm] [mm] PU Order description Article number
4.8 35 500 Coupling screw VHT-R 4.8x35 3 496 700 609 Window Production Timber
4.8 50 500 Coupling screw VHT-R 4.8x50 3 496 800 609
4.8 60 500 Coupling screw VHT-R 4.8x60 3 496 900 609
4.8 70 500 Coupling screw VHT-R 4.8x70 3 497 000 609
4.8 80 500 Coupling screw VHT-R 4.8x80 3 497 100 609
4.8 90 250 Coupling screw VHT-R 4.8x90 3 497 200 609
4.8 100 250 Coupling screw VHT-R 4.8x100 3 497 300 609
4.8 120 250 Coupling screw VHT-R 4.8x120 3 497 500 609 PH 2 Window Production Aluminium
4.8 140 200 Coupling screw VHT-R 4.8x140 3 497 700 609
4.8 160 200 Coupling screw VHT-R 4.8x160 3 497 900 609 J2
4.8 180 200 Coupling screw VHT-R 4.8x180 3 498 100 609
4.8 200 200 Coupling screw VHT-R 4.8x200 3 498 300 609

Application area Technical Data Cross reference page
l For profile coupling of window hinges, Head diameter 9.0 mm Bit cross-recess ...........................72 Window Installation Window Installation Coupling / False Edge Coupling / False Edge
Hammer drill SDS plus ...............73
®
window-balcony-door combinations etc. Drive Cross recess PH 2
made of plastic and wood-based material Thread type Special thread
l Also suitable for false edges
Properties
l Case-hardened steel
l Climadur coated – high-quality coating Window Installation Masonry / Concrete
to improve corrosion protection
(15 Kesternich cycles, DIN 50018, 1997)

Installation process Compo- Compo-
l Pre-drill component 1 with max. 6 mm, nent 1 nent 2
pre-drill component 2 with 4 mm
l Position on the already mounted element Window Installation Timber
and align
l Then fasten with EJOT coupling screw type
VHT-R

Window Installation Attachments

Special Screws

Accessories / Tools
