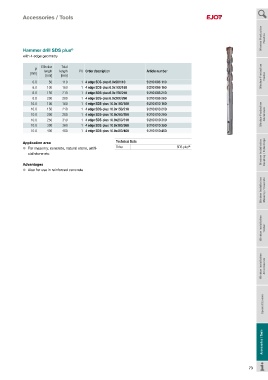

Page 73 - igs-ejot-gesamt_en

Accessories / Tools

Window Production Plastics

Hammer drill SDS plus
®
with 4 edge geometry

Effective Total
Ø
[mm] length length PU Order description Article number
[mm] [mm] Window Production Timber
6.0 50 110 1 4 edge SDS-plus 6.0x50/110 9 210 006 110
6.0 100 160 1 4 edge SDS-plus 6.0x100/160 9 210 006 160
6.0 150 210 1 4 edge SDS-plus 6.0x150/210 9 210 006 210
6.0 200 260 1 4 edge SDS-plus 6.0x200/260 9 210 006 260
10.0 100 160 1 4 edge SDS-plus 10.0x100/160 9 210 010 160
10.0 150 210 1 4 edge SDS-plus 10.0x150/210 9 210 010 210
10.0 200 260 1 4 edge SDS-plus 10.0x200/260 9 210 010 260 Window Production Aluminium
10.0 250 310 1 4 edge SDS-plus 10.0x250/310 9 210 010 310
10.0 300 360 1 4 edge SDS-plus 10.0x300/360 9 210 010 360
10.0 400 460 1 4 edge SDS-plus 10.0x400/460 9 210 010 460

Application area Technical Data
l For masonry, concrete, natural stone, artifi- Drive SDS plus ®
cial stone etc. Window Installation Coupling / False Edge

Advantages
l Also for use in reinforced concrete

Window Installation Masonry / Concrete

Window Installation Timber

Window Installation Window Installation Attachments Attachments

Special Screws

Accessories / Tools Accessories / Tools

73
